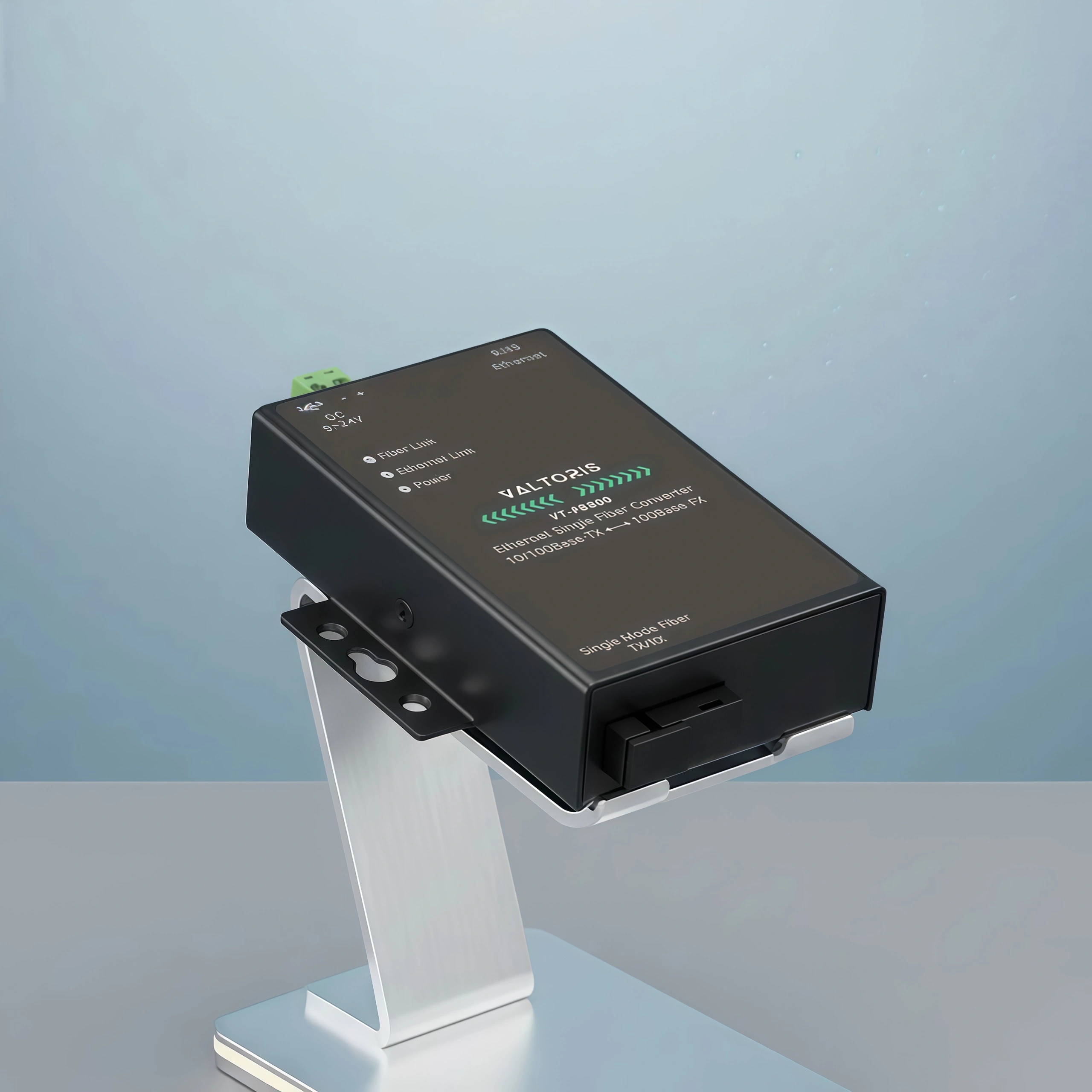

Industrial Fiber to Ethernet Media Converter, 10/100Base-TX to 100Base-FX, Single-Mode SC Fiber, up to 20km
Price range: $28.99 through $57.50
Product Quick Specs
- Model: VT-FB800 (A/B Pair Required)
- Primary Function: 10M/100M Ethernet to Optical Fiber Media Converter.
- Fiber Interface: Single-mode Single-fiber, SC Connector.
- Transmission Distance: Up to 20 Kilometers point-to-point.
- Ethernet Interface: RJ45 (10M/100M Adaptive, Auto MDI/MDI-X).
- Power Supply: Industrial DC 9~24V (Terminal Block or 5.5mm DC Plug).
- Operating Environment: -40°C ~ +85°C.
Interface Definition
| Hardware & Appearance | |
| Fiber Interface | Optical SC pluggable interface |
| Ethernet Port | 10M/100M Auto-adaptive RJ45 (2KV surge protection) |

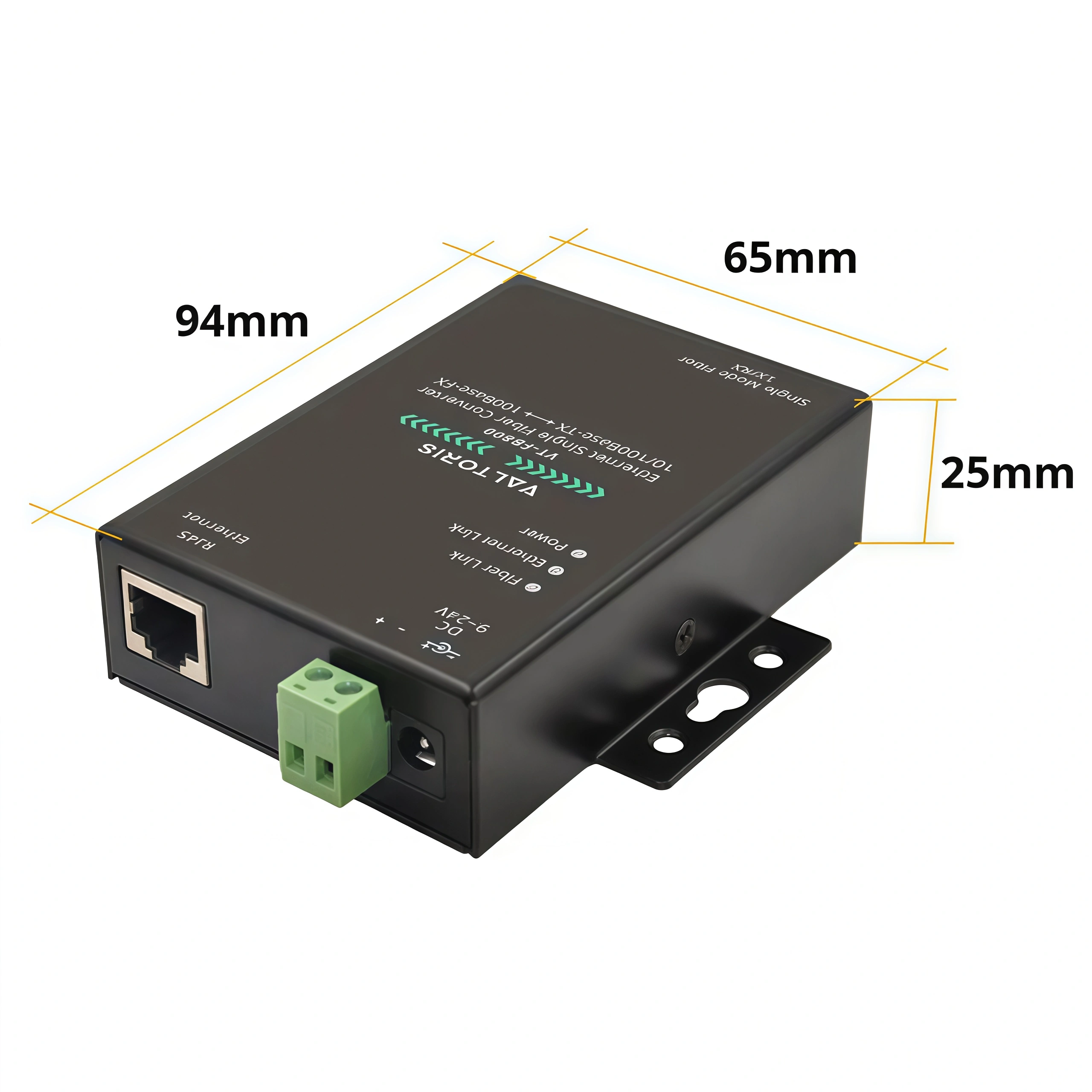

| Dimensions (L x W x H) | 94 mm × 65 mm × 25 mm |
| Optical Fiber Parameters | |
| Fiber Type | Single-mode Single-fiber, Bi-direction |
| VT-FB800-A Wavelength | TX: 1310nm / RX: 1550nm |
| VT-FB800-B Wavelength | TX: 1550nm / RX: 1310nm |
| Transmission Distance | Up to 20 Kilometers |
| Power & Environment | |
| Power Supply | DC 9V ~ 24V (165mA@9V) via Terminal Block or 5.5mm Plug |
| Operating Temperature | -40°C ~ +85°C |
| Humidity | 5 ~ 95% RH (relative humidity) |
Weight: 0.650 kg
1. VT-FB800 main unit x1
2.OPTIONS 12V 1.0A power adapter x1
